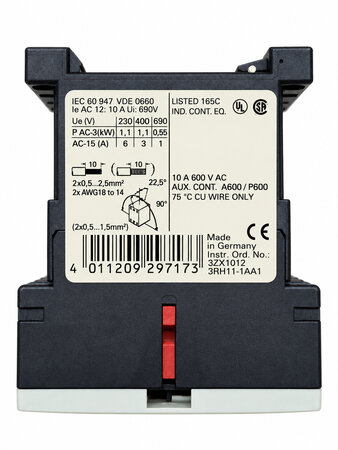

Siemens SIRIUS 3RH1131-2KB40 contactor relay – rear nameplate with technical specifications and EAN
close show/hide sidebar
Siemens SIRIUS 3RH1131-2KB40 contactor relay – rear nameplate with technical specifications and EAN

Siemens SIRIUS 3RH1131-2KB40 Contactor Relay 24 V DC 3NO+1NC – Used

articlenumber: 40056
EUR 19,90 *
* excluding VAT plus shipping
on stock
quick delivery
On stock: 1
Total
Unit price
base price
Description
Additional Informations
Query on the Item?

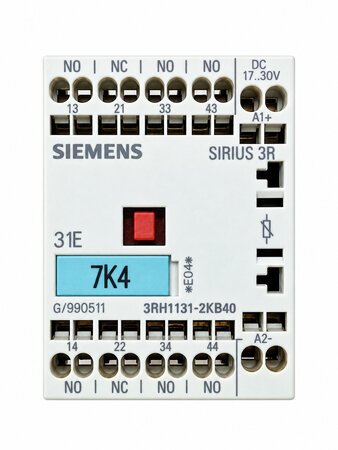

Siemens SIRIUS 3RH1131-2KB40 contactor relay with spring-loaded terminals and integrated varistor.

The unit was operational until removal and is supplied in the condition shown. Ideal as a replacement for existing systems with the identical model designation.

TECHNICAL INFORMATION

  • Manufacturer: Siemens AG

  • Series: SIRIUS 3R

  • Model: 3RH1131-2KB40

  • Product type: Contactor relay

  • Coil voltage: 24 V DC

  • Operating range: 17–30 V DC

  • Contact configuration: 3 NO + 1 NC

  • Contacts: 13–14, 21–22, 33–34 and 43–44

  • Surge suppression: Integrated varistor

  • Connection type: Spring-loaded terminals

  • Frame size: S00

  • Rated operational current AC-12: 10 A

  • AC-15: 6 A at 230 V / 3 A at 400 V / 1 A at 690 V

  • Rated insulation voltage: 690 V

  • EAN: 4011209297173

  • Printed instruction number: 3ZX1012-0RH11-1AA1

  • Country of manufacture: Germany

  • Condition: Used, operational until removal

SCOPE OF SUPPLY

  • 1 × Siemens SIRIUS 3RH1131-2KB40 contactor relay as shown

Please compare the complete model designation, coil voltage and contact configuration with the existing unit before purchasing.
