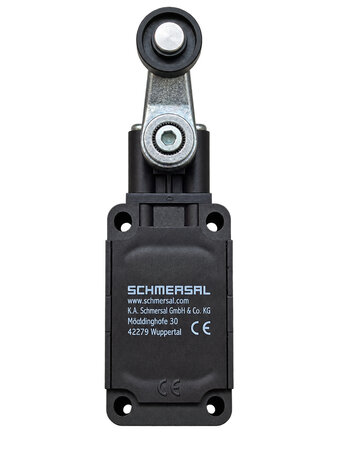

Schmersal T4VH 336-11Z-M20 safety position switch ID 101158892 with roller lever – front view

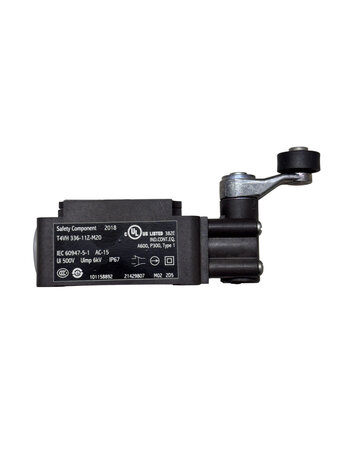

Schmersal T4VH 336-11Z-M20 position switch ID 101158892 with IP67 nameplate and roller lever

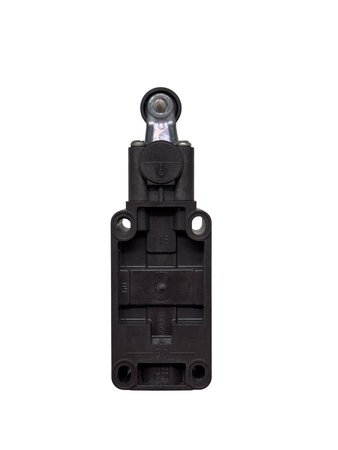

Schmersal T4VH 336-11Z-M20 safety position switch ID 101158892 – rear view with mounting holes
close show/hide sidebar
Schmersal T4VH 336-11Z-M20 safety position switch ID 101158892 with roller lever – front view
Schmersal T4VH 336-11Z-M20 position switch ID 101158892 with IP67 nameplate and roller lever
Schmersal T4VH 336-11Z-M20 safety position switch ID 101158892 – rear view with mounting holes

Schmersal T4VH 336-11Z-M20 Safety Position Switch with Roller Lever – Used

articlenumber: 40052
EUR 39,00 *
* excluding VAT plus shipping
on stock
quick delivery
On stock: 1
Total
Unit price
base price
Description
Additional Informations
Query on the Item?

Used Schmersal T4VH 336-11Z-M20 safety position switch with adjustable roller lever.

The switch was operational until removal and is supplied in the condition shown. Suitable as a replacement for existing Schmersal position switches with identical specifications.

TECHNICAL INFORMATION

  • Manufacturer: K.A. Schmersal GmbH & Co. KG

  • Brand: Schmersal

  • Model: T4VH 336-11Z-M20

  • Item number shown on nameplate: 101158892

  • Current catalogue number: 151158892

  • Additional identification: 21429807 / M02 2D5

  • Year of manufacture: 2018

  • Product type: Position switch with safety function

  • Actuating element: Roller lever

  • Contact configuration: 1 NO / 1 NC

  • Switching principle: Slow action

  • Cable entry: M20 × 1.5

  • Utilisation category AC-15: 230 V AC / 4 A

  • Utilisation category DC-13: 24 V DC / 4 A

  • Thermal test current: 10 A

  • Rated insulation voltage: 500 V

  • Rated impulse withstand voltage: 6 kV

  • Degree of protection: IP65 / IP67

  • Standard: EN IEC 60947-5-1

  • Condition: Used, operational until removal

SCOPE OF SUPPLY

  • 1 × Schmersal T4VH 336-11Z-M20 safety position switch as shown

Please compare the complete model designation, item number and contact configuration with the existing switch before purchasing.
