Siemens SIRIUS 3RH1122-2KB40 Contactor Relay 24 V DC 2NO+2NC – Used

Siemens SIRIUS 3RH1122-2KB40 contactor relay with spring-loaded terminals and integrated varistor.

The contactor relay was operational until removal and is supplied in the condition shown. Ideal as a replacement for existing systems with identical specifications.

TECHNICAL INFORMATION

• Manufacturer: Siemens AG

• Series: SIRIUS 3R

• Model: 3RH1122-2KB40

• Product type: Contactor relay / coupling relay

• Coil voltage: 24 V DC

• Operating range: 17–30 V DC

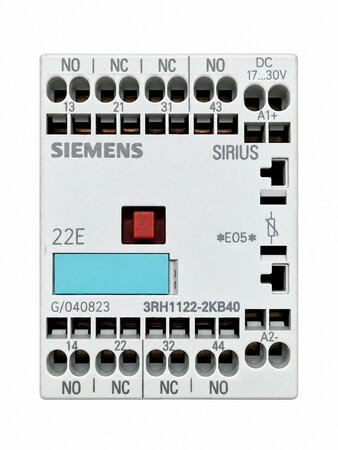

• Contact configuration: 2 NO + 2 NC

• NO contacts: 13–14 and 43–44

• NC contacts: 21–22 and 31–32

• Surge suppression: Integrated varistor

• Connection type: Spring-loaded terminals

• Frame size: S00

• Switching element code: 22E

• Version: E05

• Rated operational current AC-12: 10 A

• AC-15: 6 A at 230 V / 3 A at 400 V / 1 A at 690 V

• Rated insulation voltage: 690 V

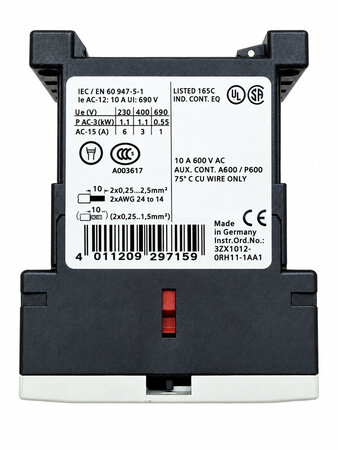

• EAN: 4011209297159

• Printed instruction number: 3ZX1012-0RH11-1AA1

• Successor model: Siemens SIRIUS 3RH2122-2KB40

• Country of manufacture: Germany

• Condition: Used, operational until removal

SCOPE OF SUPPLY

• 1 × Siemens SIRIUS 3RH1122-2KB40 contactor relay as shown

Please compare the complete model designation, coil voltage and contact configuration with the existing unit before purchasing.
