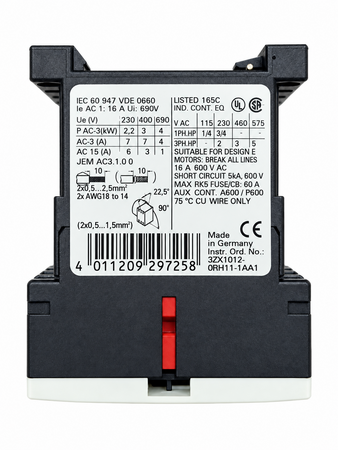

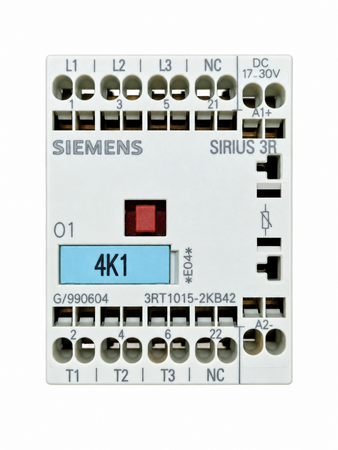

Siemens SIRIUS 3RT1015-2KB42 Power Contactor 24 V DC 7 A – Used

Siemens SIRIUS 3RT1015-2KB42 power contactor with spring-loaded terminals, integrated varistor and one NC auxiliary contact.

The contactor was operational until removal and is supplied in the condition shown. Ideal as a replacement for existing systems with identical specifications.

TECHNICAL INFORMATION

• Manufacturer: Siemens AG

• Series: SIRIUS 3R

• Model: 3RT1015-2KB42

• Product type: Power contactor / coupling contactor

• Main contacts: 3-pole

• Auxiliary contact: 1 NC, 21–22

• Coil voltage: 24 V DC

• Operating range: 17–30 V DC

• Surge suppression: Integrated varistor

• Connection type: Spring-loaded terminals

• Frame size: S00

• Rated current AC-1: 18 A

• Rated current AC-3: 7 A at 230/400 V, 4 A at 690 V

• Output AC-3: 2.2 kW at 230 V

• Output AC-3: 3 kW at 400 V

• Output AC-3: 4 kW at 690 V

• Rated insulation voltage: 690 V

• Version: E04

• EAN: 4011209297258

• Printed instruction number: 3ZX1012-0RH11-1AA1

• Successor model: Siemens SIRIUS 3RT2015-2KB42

• Country of manufacture: Germany

• Condition: Used, operational until removal

SCOPE OF SUPPLY

• 1 × Siemens SIRIUS 3RT1015-2KB42 power contactor as shown

Please compare the complete model designation, coil voltage and contact configuration with the existing unit before purchasing.
