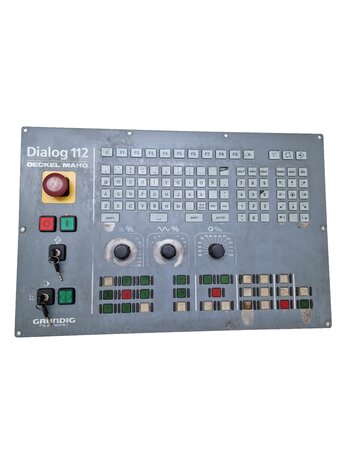

The Deckel Maho Dialog 112 operator panel is a complete machine operating and input unit for the DMC 70 V CNC machining centre. The panel is used for entering programs, machine commands and numerical values as well as for manually operating various machine functions.
The front panel is equipped with an alphanumeric keyboard, function keys, numerical keypad, navigation keys, machine function buttons and several control elements. It also features an emergency stop button, on and off pushbuttons, two key switches and three rotary controls for adjusting different machine parameters and override values.

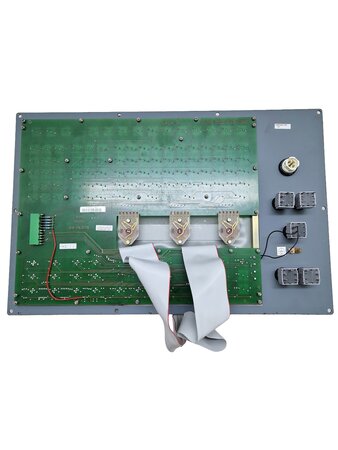

The front is marked Deckel Maho, Dialog 112 and Grundig numeric. A RAFI printed circuit board with the visible marking 5 40 552.013-000 is installed on the rear. Connection to the machine control system is provided by several multipole connectors and ribbon cables.
The operator panel was removed from a Deckel Maho DMC 70 V and is particularly suitable for maintenance, repair and spare parts stock for existing Dialog 112 control systems.
The item is used and shows significant signs of age and previous operation. Abrasion, discoloration and areas of corrosion are visible on the front panel. One key cap in the upper keyboard section is damaged or partially missing. The two keys shown in the product image are included with the operator panel.
Compatibility Notice:
Before purchasing, please compare the front panel design, key layout, PCB marking 5 40 552.013-000, connectors and rear configuration with your existing component and machine or control documentation. Different operator panel and connector versions may have been used within the Dialog 112 series.
Technical Data:
Manufacturer / marking: Deckel Maho
Control designation: Dialog 112
Front marking: Grundig numeric
Rear PCB manufacturer: RAFI
Component: CNC operator panel / control panel / keyboard panel
Machine assignment: Deckel Maho DMC 70 V
Visible PCB marking: 5 40 552.013-000
Operating elements: alphanumeric keyboard, function keys and numerical keypad
Navigation: cursor and direction keys
Safety device: emergency stop button
Switching elements: on and off pushbuttons
Key switches: 2, keys included as shown
Rotary controls: 3 override or adjustment controls
Additional controls: illuminated machine function buttons
Rear connections: several multipole connectors
Internal connection: ribbon cables
Application: CNC control / machine operation / industrial automation
Condition: used, with significant visual signs of use
Special condition note: one key cap in the upper keyboard section is damaged or partially missing
Scope of supply: Dialog 112 operator panel with rear PCB, ribbon cables and two keys as shown
