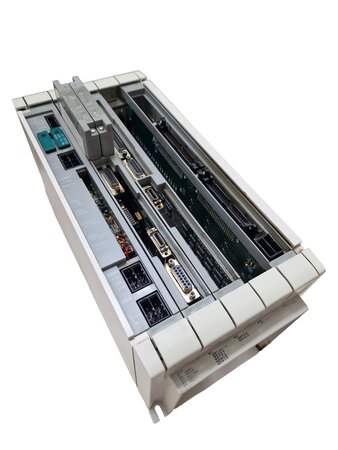

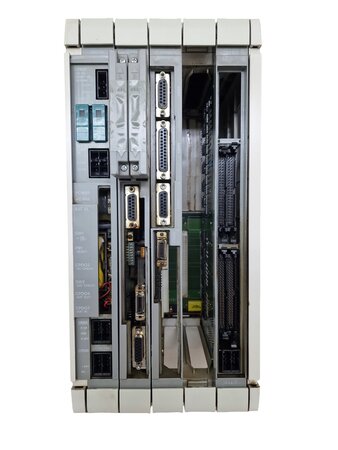

Mitsubishi FCA530MH numerical control system assembly, used, removed from a Deckel Maho DMC 70 V.
The complete control assembly was removed from a functioning machine and is in good visual used condition. It includes several installed Mitsubishi modules and PCBs, including visibly marked components such as QX084, QX141-1, QX524, QX535 and QX815.
The assembly also includes the visibly installed memory chips / EPROM modules as shown in the product images. These are part of the pictured control unit and should be compared with the existing control configuration before replacement.
The assembly is suitable as a spare part for maintenance, repair or spare parts stock in CNC machine tool applications. This item is especially relevant for customers searching for Mitsubishi FCA530MH, QX535, QX524, QX084, QX141-1, QX815 or matching memory / EPROM modules from a Deckel Maho DMC 70 V.
The scope of supply corresponds to the product images shown, including the installed QX modules and the visibly installed memory chips / EPROM modules.
Before purchase, please compare the exact type designation, serial number, installed modules, slot configuration, memory configuration and connector layout with your existing control unit or machine documentation.
Technical Data:
Manufacturer: Mitsubishi Electric
Component: numerical control system / CNC control unit / control assembly
Type: FCA530MH

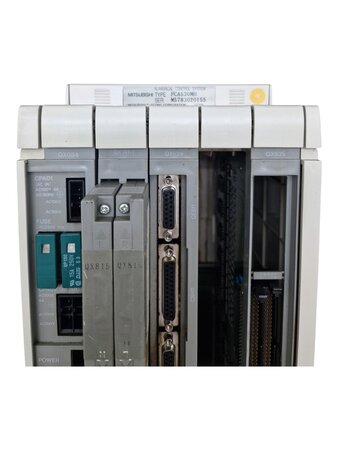

Serial number according to nameplate: M5783020155
Machine assignment: removed from Deckel Maho DMC 70 V
Visible module / PCB markings: QX084, QX141-1, QX524, QX535, QX815
Additional visible markings: CPA01, CPD03, CPD04, CPD05, CPD06, CPD07, CES11, CSH11, CSH12, CSA21
Memory configuration: with visibly installed memory chips / EPROM modules as shown
Connectors: several multipole connectors and D-sub connections
Visible voltage marking: AC100V, 50/60Hz
Visible fuse marking: AC250V 15A
Manufacturer marking: Mitsubishi Electric Corporation
Country of manufacture: Japan
Application: CNC control / machine tools / Deckel Maho DMC 70 V spare part
Condition: used, good visual condition
Origin: removed from a functioning machine
Scope of supply: complete assembly as shown in the product images
