Siemens SIRIUS 3RV1011-1EA10 Motor Protection Circuit Breaker 2.8–4 A – Used

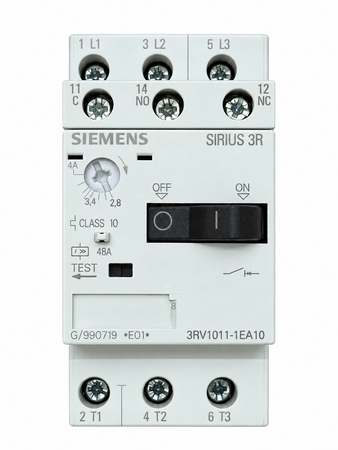

Siemens SIRIUS 3RV1011-1EA10 motor protection circuit breaker with screw terminals and transverse auxiliary switch.

The unit was operational until removal and is supplied in the condition shown. Ideal as a replacement for existing systems with identical specifications.

TECHNICAL INFORMATION

• Manufacturer: Siemens AG

• Series: SIRIUS 3R

• Model: 3RV1011-1EA10

• Product type: Motor protection circuit breaker

• Number of poles: 3

• Adjustment range: 2.8–4 A

• Trip class: Class 10

• Short-circuit release according to device marking: 48 A

• Motor rating: Up to 1.5 kW at 400 V

• Rated voltage: Up to 690 V AC

• Breaking capacity Icu/Ics at 400 V: 100 kA

• Breaking capacity Icu/Ics at 690 V: 2 kA

• Auxiliary switch: Transverse auxiliary switch with 1 changeover contact

• Auxiliary contacts: 11–12 NC / 11–14 NO

• Connection type: Screw terminals

• Frame size: S00

• Frequency: 50/60 Hz

• Version: E01

• Production marking: G/990719

• EAN: 4011209263567

• Printed instruction number: 3ZX1012-0RV01-1AA1

• Successor model: Siemens SIRIUS 3RV2011-1EA10

• Country of manufacture: Germany

• Condition: Used, operational until removal

SCOPE OF SUPPLY

• 1 × Siemens SIRIUS 3RV1011-1EA10 motor protection circuit breaker

• 1 × Mounted transverse auxiliary switch

Supplied as shown. Please compare the complete model designation and adjustment range with the existing unit before purchasing.
