Pepperl+Fuchs NBB8-F33-E2 Inductive Proximity Sensor 8 mm – ID 200042 – Used

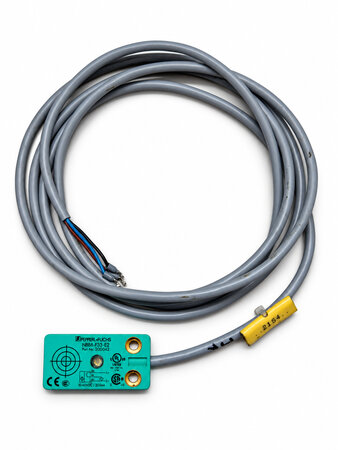

Used Pepperl+Fuchs NBB8-F33-E2 inductive proximity sensor with an 8 mm rated operating distance and permanently attached cable.

The sensor was operational until removal and is supplied in the condition shown. Suitable as a replacement for existing sensors with an identical model and part number.

Technical Information

• Manufacturer: Pepperl+Fuchs SE

• Brand: Pepperl+Fuchs

• Model: NBB8-F33-E2

• Part number / ID: 200042

• Product type: Inductive proximity sensor

• Switching function: Normally open (NO)

• Output: PNP, 3-wire DC

• Rated operating distance: 8 mm

• Installation: Flush

• Operating voltage: 10–60 V DC

• Operating current: Max. 200 mA

• Switching frequency: Up to 350 Hz

• Connection: Permanently attached 2 m cable

• Degree of protection: IP67

• Dimensions: 50 × 25 × 10 mm

• Ambient temperature: −35 to +70 °C

• Existing cable marking: 2154

• Condition: Used, operational until removal

Scope of Supply

• 1 × Pepperl+Fuchs NBB8-F33-E2 proximity sensor with connection cable as shown

Please compare the complete model designation and part number with the existing sensor before purchasing.
