Murrelektronik 90002 EK 10/SM Relay I/O Board

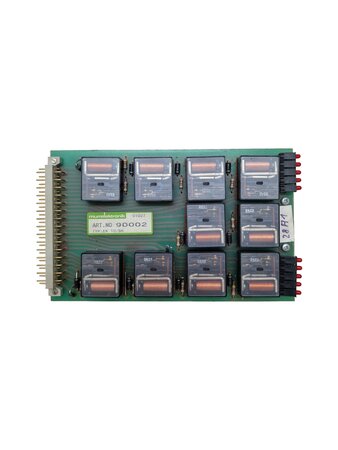

The Murrelektronik 90002 EK 10/SM is an industrial relay and I/O circuit board for use in machine controls and automation systems. The plug-in board is equipped with ten electromechanical relays multiple red status indicators and a multipole card connector.
The board was removed from a machine that was operational before dismantling and is in good used condition.
Function and application
The relay board is used as an interface between a higher-level controller and the connected circuits of a machine. Its individual relay channels can switch electrical signals or loads while providing galvanic isolation from the control circuit.
The red indicators provide visual monitoring of various switching states. The board is installed in a compatible card rack or control unit through its multipole card connector.
The exact original application within the machine and the electrical pin assignment could not be determined.
Equipment
- Original Murrelektronik industrial circuit board
- Ten electromechanical relays
- Multiple red status indicators
- Multipole card connector
- Plug-in design for machine control systems
- Suitable as a replacement part for existing installations
- Useful for industrial maintenance repair and spare-parts inventories
Technical information
Manufacturer: Murrelektronik
Part number: 90002
Type: EK 10/SM
Product type: relay I/O board
Number of relays: 10
Relay design: electromechanical
Display: multiple red status indicators
Connection: multipole card connector
Design: open plug-in circuit board
Condition: used in good condition
Origin: removed from an operational machine
Electrical voltages contact ratings and pin assignments are not documented. They must be checked against the existing machine or its electrical documentation before installation.
Compatibility information
The board is not intended to be used as a universal relay module. Before ordering the part number 90002 type designation EK 10/SM connector dimensions and electrical pin assignment must be compared with the existing assembly.
Installation and commissioning must only be carried out by appropriately qualified personnel.
Condition and scope of delivery
The board is used and in good visual condition. It was removed from a machine that was operational before dismantling. No separate electrical bench test after removal has been performed or documented.
Age-related and normal signs of use may be present and are visible in the product images.
The scope of delivery includes only the pictured Murrelektronik relay board. A card rack mating connector cables documentation and other accessories are not included.
