Indramat KDS 1.1-150-300-W1-220 AC servo drive
Indramat KDS 1.1-150-300-W1-220 AC servo drive from the KDS 1 series used in good condition. The servo module is designed to control compatible Indramat MAC AC servo motors within a modular drive system.

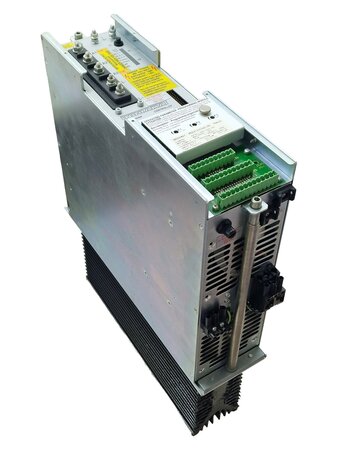

The unit operates with a 300 V DC link circuit and features external cooling with a 220 V AC fan supply. The external heat sink and forced ventilation help reduce heat generation inside the control cabinet.
MOD4/1X0368-281 programming module

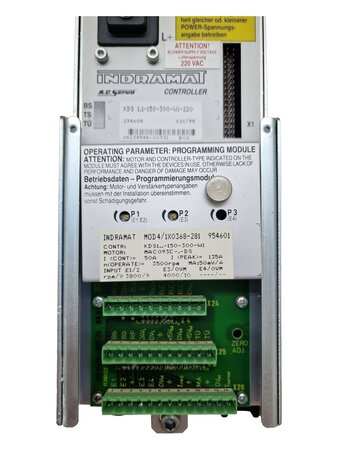

The servo drive is equipped with a MOD4/1X0368-281 programming module. This module contains operating parameters matched to the intended motor and application.
According to the nameplate, the installed programming module is configured for:
- Indramat MAC093C--DS motor
- Configured continuous current: 50 A
- Configured peak current: 135 A
- Operating speed: 3500 rpm
- Current measuring output MA: 50 mV/A
- Input E1/E2: 3800 rpm at 9 V
- Input E3/0VM: 4000 rpm at 10 V
Technical data
Manufacturer: Indramat
Product type: AC servo drive module
Type: KDS 1.1-150-300-W1-220
Part number shown on nameplate: 234608
Series: KDS 1
Type current: 150 A
Servo drive peak current: 150 A
Servo drive continuous current: 96 A
DC link voltage: 300 V DC ±15%
Continuous power rating: 45 kW
Cooling: forced ventilation with external heat sink
Fan supply: 220 V AC at 50 to 60 Hz
Protection rating: IP10
Programming module: MOD4/1X0368-281
Programming module number: 954601
Assigned motor according to module: MAC093C--DS
Condition: used in good condition
Compatibility
Before installation, the complete servo drive type designation, programming module, intended motor and existing machine configuration must be compared.
The motor and controller designations stated on the programming module must match the installed drive components. Operation with an incompatible configuration may result in malfunction or damage.
The KDS module forms part of a modular Indramat drive system and requires compatible power supply, motor and connection components.
Condition and scope of supply

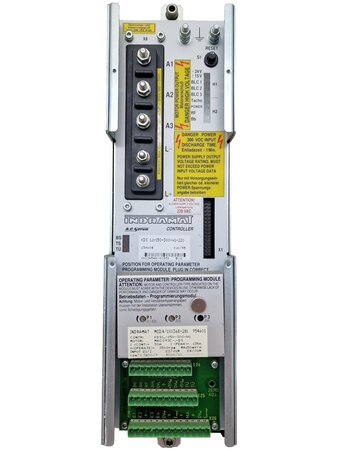

The servo drive is used and in good condition. Minor age-related and usage-related marks may be present. The actual condition and available connections are shown in the product images.
The scope of supply includes the pictured servo drive, the installed programming module and the attached cooling and fan assembly. Additional accessories, connection cables and documentation are not included.
