Indramat KDS 1.1-100-300-W1 AC Servo Drive

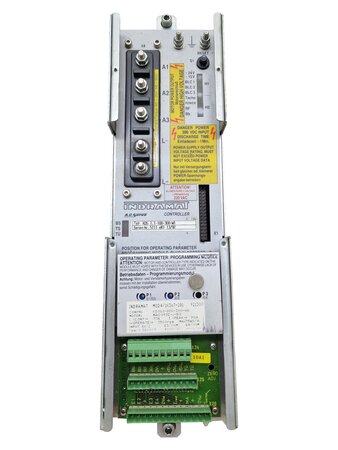

Indramat KDS 1.1-100-300-W1 AC servo drive from the KDS 1 series, used and in good visual condition. The servo drive module is designed for operation with compatible Indramat MAC AC servo motors in industrial drive systems.
The controller is suitable as a replacement component for existing KDS configurations in machine tools, CNC machines and industrial automation systems. The type designation is also commonly written as KDS1.1-100-300-W1.

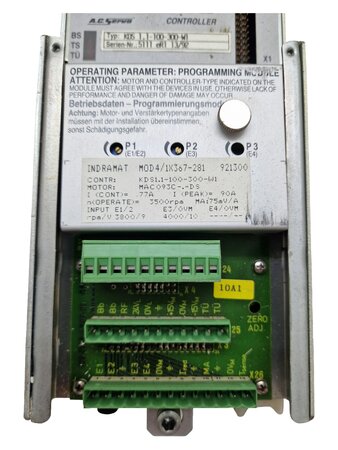

The controller is equipped with an installed MOD 4/1X367-281 programming module. According to the module nameplate, it is configured for a MAC 093C-.-DS motor. The programming module contains the drive-specific current, speed and input settings.
Product features
- Original Indramat AC servo controller
- Type KDS 1.1-100-300-W1
- Controller current class: 100 A
- DC link voltage: 300 V DC
- Forced-air cooling version
- Blower supply according to the device label: 220 V AC
- Installed MOD 4/1X367-281 programming module included
- Actual photographs of the offered unit
- Suitable as a replacement part for compatible Indramat drive systems
Controller specifications
- Manufacturer: Indramat
- Product type: AC servo controller / servo drive module
- Series: KDS 1
- Type: KDS 1.1-100-300-W1
- Alternative spelling: KDS1.1-100-300-W1
- Current class according to type designation: 100 A
- DC link voltage: 300 V DC
- Cooling: forced-air cooling
- Blower supply: 220 V AC
- Serial marking according to the nameplate: 5111 eR1 13/92
Installed programming module data
- Programming module: MOD 4/1X367-281
- Additional module marking: 921300
- Assigned motor: MAC 093C-.-DS
- Configured continuous current: 77 A
- Configured peak current: 90 A
- Operating speed: 3,500 rpm
- MA: 75 mV/A
- Input E1/E2: 3,800 rpm / 9 V
- Input E3/0VM: 4,000 rpm / 10 V
- Input E4/0VM: not assigned
Condition and scope of supply

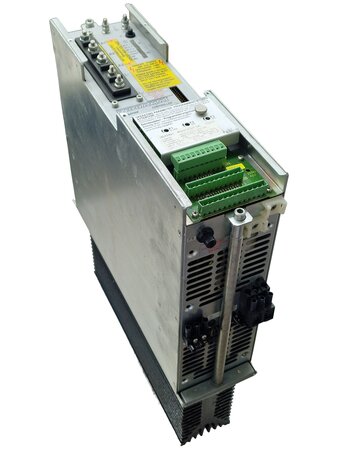

Used item in good visual condition. The housing and labels show normal signs of age and previous industrial use. The actual condition and scope of supply are documented in detail in the product photographs.
Scope of supply: 1 × Indramat KDS 1.1-100-300-W1 AC servo drive including the installed MOD 4/1X367-281 programming module and the terminal connectors shown in the photographs.
Important compatibility information
The installed programming module is configured for a specific motor and controller combination. Before installation, the complete controller designation, programming module number, motor assignment, connection data and blower voltage must be compared with the existing system.
Installation and commissioning must only be carried out by appropriately qualified personnel.
Not sure whether this controller is compatible with your system? Send us the type designation of your existing controller and photographs of its nameplates. We will be pleased to assist with identification.
